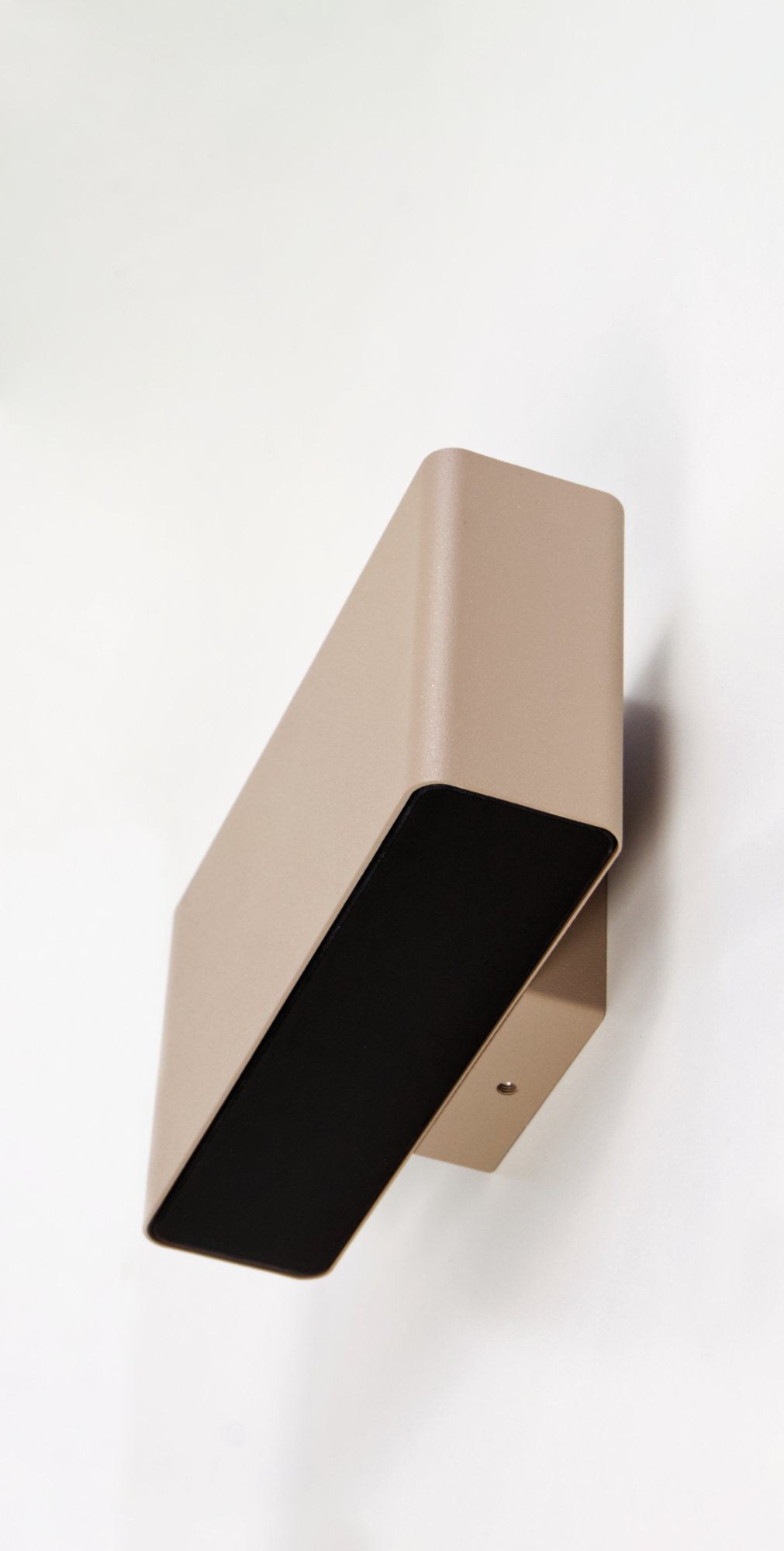

Divar Wall Mono emission

Base made of EN47100 die-cast aluminum and extruded structure, single or double emission. Polyester powder coated on a treated layer to prevent corrosion, available in five standard colours, we carry out a chemical treatment on all our aluminum products which consists of a cataphoresis process, followed by a 60/80 micron layer of powder coating of polyester.
Characterized by recessed optics and equipped with a low luminance screen to reduce glare as much as possible. For the Power Led model, the diffuser is in transparent tempered silk-screened glass, while the MidPower Led model is supplied with sandblasted glass to guarantee a homogeneous light emission.
BEAMS 19°- 32°- 65°- DIFFUSED
Integrated power supply 220-240V 50/60Hz
Power LED mono emission model (12,1Wled) (15,4We)
Double emission (2×12,1Wled) (29,7We)
Single emission diffused model (5,7Wled) (7,2We)
Double emission (2×4,8Wled) (14We)
CCT: 2700K/3000K CRI≥80
Class I
IP65
IP connection kit and stainless steel fixing plate included.

Available finishes

Technical data

Divar-Wall-Mono-emissione-Fascio-19°.svg

Led board with 6 Power LEDs, lenses with 19° opening and the recessed optics with anti-glare screen make this product ideal for obtaining more concentrated and homogeneous light distributions.

Tip: Hold SHIFT + click on column headers to sort by multiple columns

Divar-Wall-Mono-emissione-Fascio-32°.svg

Led board with 6 Power LEDs, lenses with 32° aperture and recessed optics with anti-glare screen make this product ideal for obtaining medium concentrated and homogeneous light distributions.

Tip: Hold SHIFT + click on column headers to sort by multiple columns

Divar-Wall-Mono-emissione-Fascio-65°.svg

Led board with 6 Power LEDs, lenses with 65° aperture and recessed optics with anti-glare screen make this product ideal for obtaining controlled and homogeneous light distributions.
