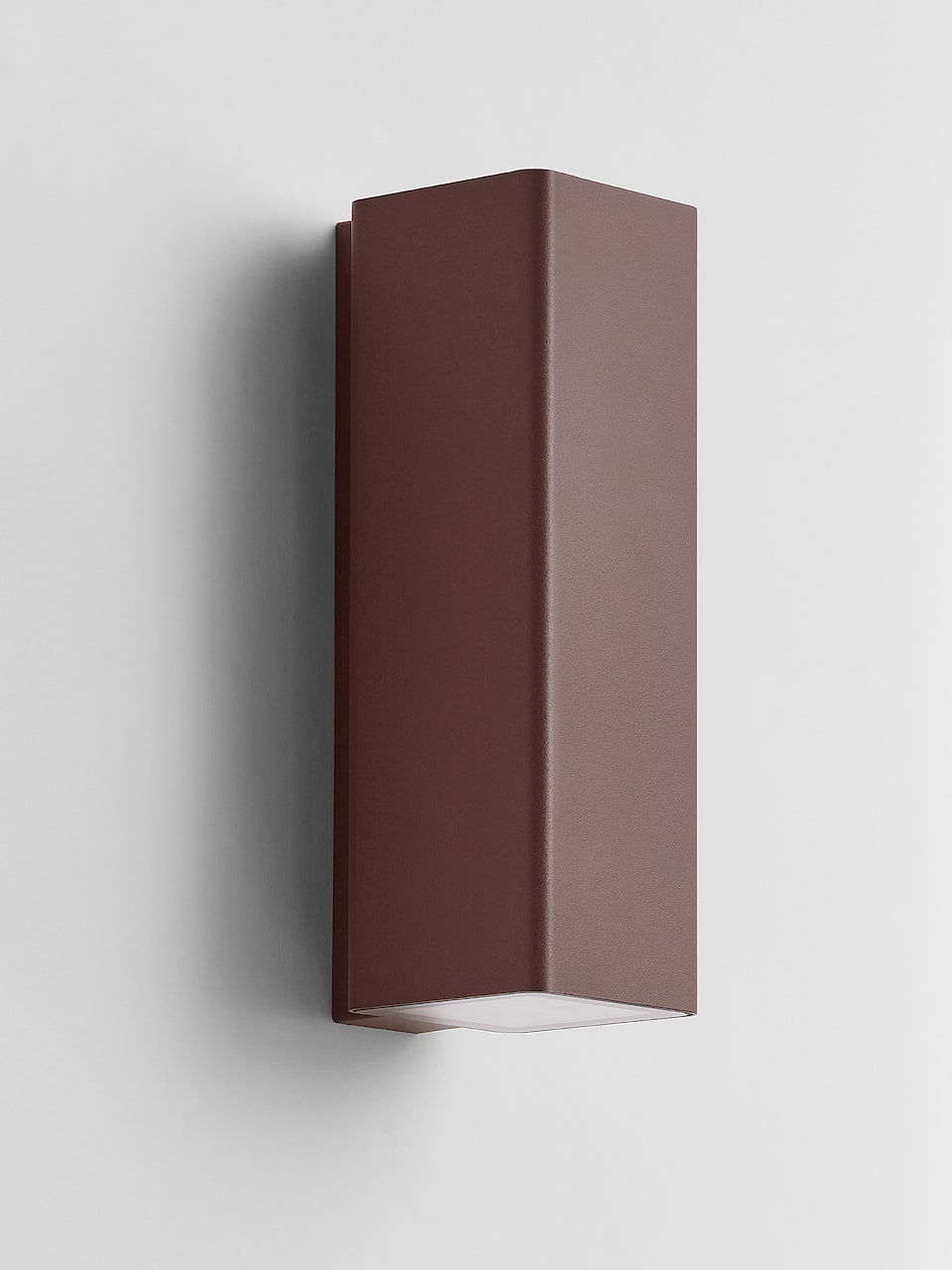

Talon Wall Double emission

wall luminaire with a simple design and suitable for any type of architecture. Base in EN47100 die-cast aluminum and body in extruded aluminium, single or double emission. Polyester powder coated on a treated layer to prevent corrosion, available in five standard colours, we carry out a chemical treatment on all our aluminum products which consists of a cataphoresis process, followed by a 60/80 micron layer of powder coating of polyester.
Characterized by recessed optics and equipped with a low luminance screen to reduce glare as much as possible, a transparent tempered silk-screened glass diffuser for the Power Led model.
The Mid Power Led model is supplied with sandblasted glasses that guarantee a homogeneous light emission, mechanically fixed with silicone glue.
BEAMS 19°-30°-55° DIFFUSED
Integrated power supply 220-240V 50/60Hz
Model Power LED , mono emission (8,2Wled ) (10,7We)
Double emission (2×8,2Wled) (19,3We)
Single emission diffused model (4,8Wled) (5,8We)
Double emission (2×4,8Wled) (11We)
CCT: 2700K/3000K CRI≥80
Class I
IP65
IP connection kit and stainless steel fixing plate included

Available finishes

Technical data

TALON-Wall-Doppia-emissione-Fascio-19°.svg

led board with 4 Power LEDs, the lenses with 19° aperture and the recessed optics with anti-glare screen make this product ideal for obtaining averagely concentrated and homogeneous light distributions

Tip: Hold SHIFT + click on column headers to sort by multiple columns

TALON-Wall-Doppia-emissione-Fascio-32°.svg

led board with 4 Power LEDs, the lenses with 32° opening and the recessed optics with anti-glare screen make this product ideal for obtaining medium concentrated and homogeneous light distribution

Tip: Hold SHIFT + click on column headers to sort by multiple columns

TALON-Wall-Doppia-emissione-Fascio-65°.svg

led board with 4 Power LEDs, the lenses with 65° opening and the recessed optics with anti-glare screen make this product ideal for obtaining averagely concentrated and homogeneous light distributions.
